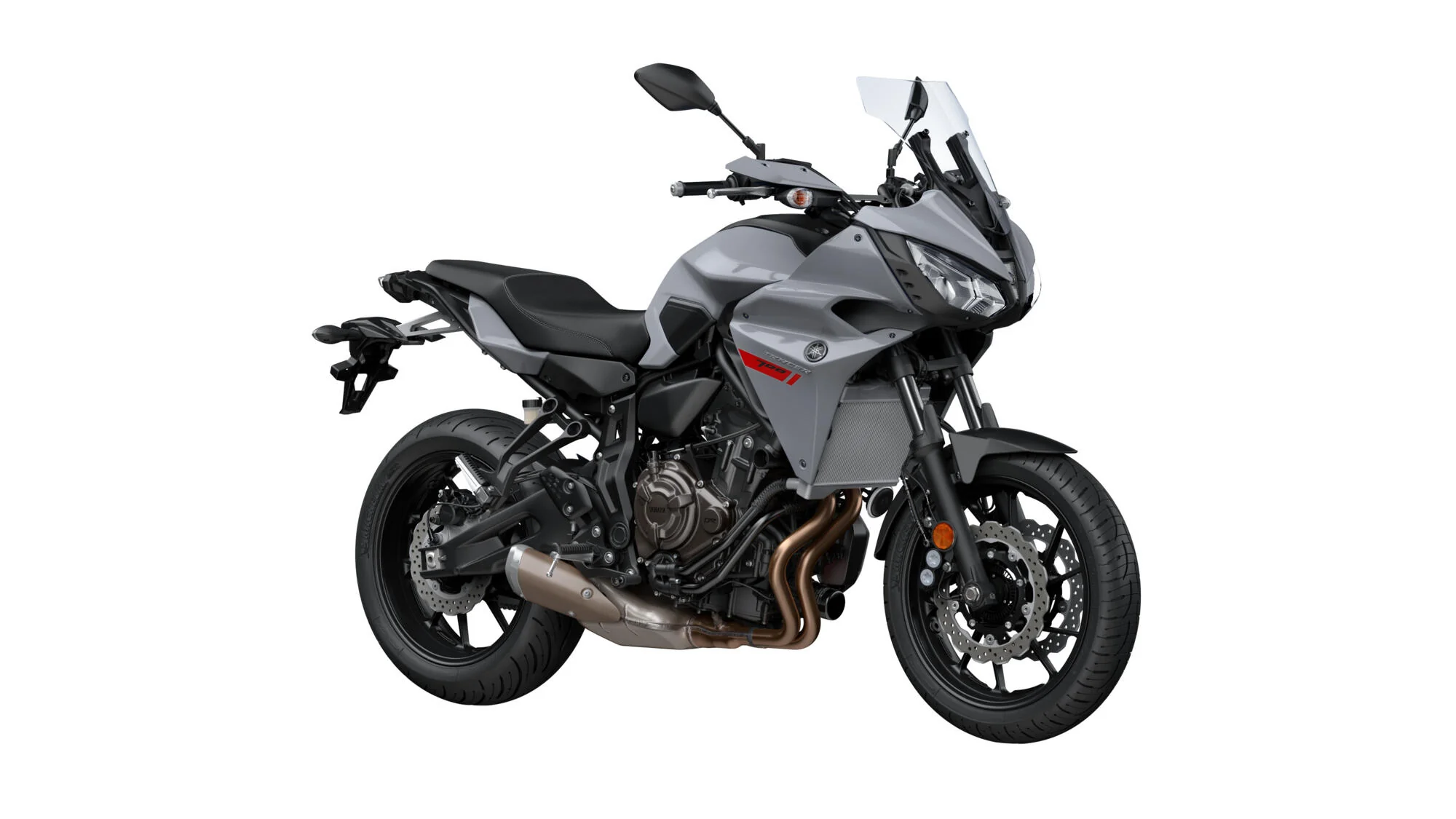

Yamaha Tracer 700
Key specifications
Engine
689 cc
Power
74 HP
Torque
68 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Hydraulic.
Rear brakes
Single disc. Hydraulic.
Technical details
Source specification data
- Make
- Yamaha
- Model
- Tracer 700
- Category
- Super motard
- Starter
- Electric
- Comments
- Windshield.
- Color Options
- Blue, black, red
- Factory Warranty
- 1 Year Limited Factory Warranty
- Power
- 73.76 HP (53.8 kW)) @ 9000 RPM
- Clutch
- Wet, Multiple Disc
- Torque
- 68.00 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 6930 RPM
- Gearbox
- 6-speed
- Ignition
- TCI
- Driveline
- Fuel consumption
- Fuel System
- Injection
- Bore X Stroke
- 80.0 x 68.6 mm (3.1 x 2.7 inches)
- Compression
- 11.5:1
- Displacement
- 689.00 ccm (42.04 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Fuel Consumption
- 4.30 litres/100 km (23.3 km/l or 54.70 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Seat Height
- 835 mm (32.9 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.00 litres (0.20 quarts)
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 806 mm (31.7 inches)
- Overall Height
- 1,270 mm (50.0 inches)
- Overall Length
- 2,138 mm (84.2 inches)
- Ground Clearance
- 140 mm (5.5 inches)
- Weight Incl Oil Gas Etc
- 196.0 kg (432.1 pounds)
- Rake
- 24.8°
- Trail
- 90 mm (3.5 inches)
- Rear Tyre
- 180/55-R17
- Frame Type
- Diamond
- Front Tyre
- 120/70-R17
- Rear Brakes
- Single disc. Hydraulic.
- Front Brakes
- Double disc. Hydraulic.
- Rear Suspension
- Swingarm, (link suspension)
- Front Suspension
- Telescopic forks
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 137 mm (5.4 inches)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 282 mm (11.1 inches)
Available colors
Blueblackred
